TZ400XS015B

The TZ400XS015B Drive Motor Volt is 600 VDC, with Rated / Peak Power of 250 / 360 kw, Rated / Peak Torque of 1600 / 2500 Nm, and a Rated / Prak RPM is 1500 / 3500 RPM. It highly integrates the functional units such as the drive motor, reducer, and differential, and replaces the traditional mechanical transmission system with an integrated design, effectively reducing energy loss in the power transmission link and improving energy utilization efficiency. Its compact structure not only greatly saves chassis space and releases more space for battery pack layout, but also reduces the vehicle’s own weight through lightweight design, achieving “more hauling and faster running”.

As a subsidiary of EMAC, EVMac provides electric drive axles, drive motors, power batteries, and vehicle controllers. As the electrification of automobiles becomes an inevitable trend, EVmac has also entered the field of electric vehicle powertrain systems.

We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.

Advantages of TZ400XS015B Drive Motor

  • Integrate the motor and transmission system to reduce energy transmission loss and improve endurance.

  • Highly integrated design saves chassis space and facilitates vehicle layout and battery installation.

  • Simplify the mechanical structure, reduce the weight of the vehicle, and indirectly increase the payload.

  • Low maintenance: No complex mechanical transmission parts, reduce gear and bearing wear, and reduce maintenance costs.

  • Support torque vector distribution, optimize vehicle handling stability, and adapt to complex working conditions.

Technical Specifications

PlatForm:TZ400
Model:TZ400XS015B
Volt:600 VDC
Rated / Peak Power:250 / 360 kw
Rated / Peak Torque:
1600 / 2500 Nm
Rated / Peak RPM:
1500 / 3500 RPM
Rated / Peak Current:
415 / 655 Arms
Weight:298 kg
Size:440 * 524 mm
Lead Time:15 – 30 Working Days
Payment Terms:T/T ,L/C
[modula id=”987525368″]

Oops! It seems that the entered tour doesn't exist. Please enter correct shortcode.

TZ180 Drive Motor

As the power core of new energy equipment, the TZ180 drive motor shoulders the key mission of converting electrical energy into mechanical energy and providing driving force for vehicles, mechanical devices, etc. Its operation is based on the principle of electromagnetic induction.

FIND MORE

Tourist Train

The CRRC Zhuzhou 1435 series dual rail sightseeing car inherits the technological DNA of CRRC high-speed rail and is designed for in-depth sightseeing in scenic areas. The innovative double-decker structure features a panoramic window on the first floor for comfortable all-weather sightseeing and an open-top layout on the second floor for a 360° immersive natural experience.

FIND MORE

Traction System

CHSR's CHSR™ CC750 air-cooled converter is a highly integrated traction and auxiliary "two-in-one" core equipment. It condenses key power conversion functions into a single compact enclosure, providing robust and stable power for intercity trains through standardized modular design, intelligent air cooling (IP65 protection), and mature and reliable components.

FIND MORE

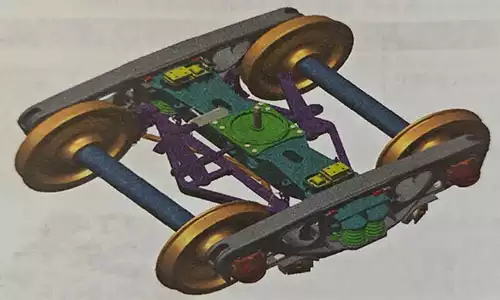

Bogie and Braking System

CRRC Braking Systems Co., Ltd.'s disc brake calipers use hydraulic or pneumatic-hydraulic conversion drive technology.They integrate automatic gap adjustment, modular caliper body, and three-point floating suspension design to ensure precise contact between brake pads and discs.

FIND MORE

Track Body Components

RailMac provides railway solutions, focusing on one-stop Lince/Huanji wiper services (R&D, production, maintenance) plus rail air conditioning. It offers diverse wipers (DC110V/74V/24V, pneumatic) and developed China’s first IP-owned CRH3 EMU wiper, with products batch-loaded in CRH380/CR400BF/CR300BF.

FIND MORE

Maintenance Equipment

RunWell is a high-tech enterprise specializing in the fields of rail transit and military industry. Its car lift machine products integrate German drive technology (such as the Demag three-in-one modular system) with intelligent control, supporting heavy-duty conditions of over 150 tons.

FIND MORE

Railway Components

CRRC specializes in innovative environmental protection sanitation systems. Products like vacuum water - saving toilet modules and waterless ecological toilets, made in an orderly factory, are applied in railways, public facilities, and outdoor scenarios.

FIND MORE

RailMac

Partnering with global leaders, RailMac offers superior railway equipment and solutions at competitive prices. It hit milestones like Thailand’s 2017 first local train, pioneered SEA new energy trains, and joined Russia’s high-speed rail project, boosting its railway industry presence.

FIND MORE

Model

Volt

Rated / Peak Power

Rated / Peak Torque

Rated / Peak RPM

TZ400XS010A540 VDC100 / 200 kw1061 / 2500 Nm900 / 2400 RPM
TZ400XS009A618 VDC200 / 260 kw1140 / 3000 Nm1675 / 3300 RPM
TZ400XS015B600 VDC250 / 360 kw1600 / 2500 Nm1500 / 3500 RPM
TZ400XS013A600 VDC250 / 410 kw1750 / 2800 Nm1364 / 3500 RPM
——END——

coming soon……

coming soon……

coming soon……

Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
